Batch tutorial

Details about the algorithms used for data processing are given in the other sections of this manual. This section explains how a sequence of processing steps can be run at once without MATLAB programming. SPM12 includes matlabbatch1 which has been derived from the SPM5 batch system, but is also available as a separate package.

In matlabbatch, each data processing step is called “module”. There are e.g. modules for spatial processing of MRI data (realignment, normalisation, smoothing), statistics (fMRI or factorial design specification, model estimation, contrast specification). A batch describes which modules should be run on what kind of data and how these modules depend on each other.

Compared to running each processing step interactively, batches have a number of advantages:

Documentation
Each batch can be saved as a MATLAB script. All parameters (including default settings) are included in this script. Thus, a saved batch contains a full description of the sequence of processing steps and the parameter settings used.

Reproducibility
Batches can be saved, even if not all parameters have been set. For a multi-subject study, this allows to create template batches. These templates contain all settings which do not vary across subjects. For each subject, they can be loaded and only subject-specific parts need to be completed.

Unattended execution
Instead of waiting for a processing step to complete before entering the results in the next one, all processing steps can be run in the specified order without any user interaction.

Multiple batches
Multiple batches can be loaded and executed together.

Error reporting
If a batch fails to complete, a standardised report will be given in the MATLAB command window. When running a batch from the GUI, this can be saved to an error .mat file.

Single subject

In this tutorial we will develop a batch for spatial processing and fMRI statistics of a single subject of the “Face” example dataset (see chapter [Chap:data:faces]). To follow this tutorial, it is not necessary to download the example dataset, except for the last step (entering subject dependent data).

To create a batch which can be reused for multiple subjects in this study, it is necessary to collect/define

  • study specific input data (e.g. MRI measurement parameters, time constants of the functional experiment, number of sessions),

  • necessary processing steps,

  • data flow between processing steps.

Subject specific input data (original functional and structural MRI data, subject specific experiment parameters) should be entered after the batch template has been saved.

Study specific input data

This dataset consists of fMRI data acquired in a single session and a structural MRI. See section 1.2 to learn how to deal efficiently with multi-session data. MRI parameters and experiment details are described in chapter [Chap:data:faces].

Necessary processing steps

Helper modules

Some SPM modules produce graphics output which is captured in a PostScript file in the current working directory. Also, a new directory needs to be created for statistics. The “BasicIO” menu provides a collection of modules which are useful to organise a batch. We will need the following modules:

  • Named directory selector (BasicIO > File/Dir Operations > Dir Operations > Named Directory Selector)

  • Change directory (BasicIO > File/Dir Operations > Dir Operations > Change Directory)

  • Make directory (BasicIO > File/Dir Operations > Dir Operations > Make Directory)

SPM processing

For a classical SPM analysis, the following processing steps are necessary:

  • Realignment (SPM > Spatial > Realign > Realign: Estimate & Reslice)

  • Slice timing correction (SPM > Temporal > Slice Timing)

  • Coregistration (SPM > Spatial > Coregister > Coregister: Estimate)

  • Segmentation (SPM > Tools > Old Segment)

  • Normalisation (SPM > Tools > Old Normalise > Old Normalise: Write)

  • Smoothing (SPM > Spatial > Smooth)

  • fMRI design (SPM > SPM > Stats > fMRI model specification)

  • Model estimation (SPM > Stats > Model estimation)

  • Contrasts (SPM > Stats > Contrast Manager)

  • Results report (SPM > Stats > Results Report)

Note that this exemplar analysis pipeline is ancient and the SPM > Tools > Old Segment and SPM > Tools > Old Normalise > Old Normalise: Write modules could be replaced by a single SPM > Spatial > Normalise: Estimate & Write one.

Add modules to the batch

The helper modules and the SPM processing modules can be assembled using the GUI. Click the “Batch” button in the SPM Menu window. First, add the helper modules, followed by the SPM modules in the order listed above. Do not configure any details until you have selected all modules.

image image

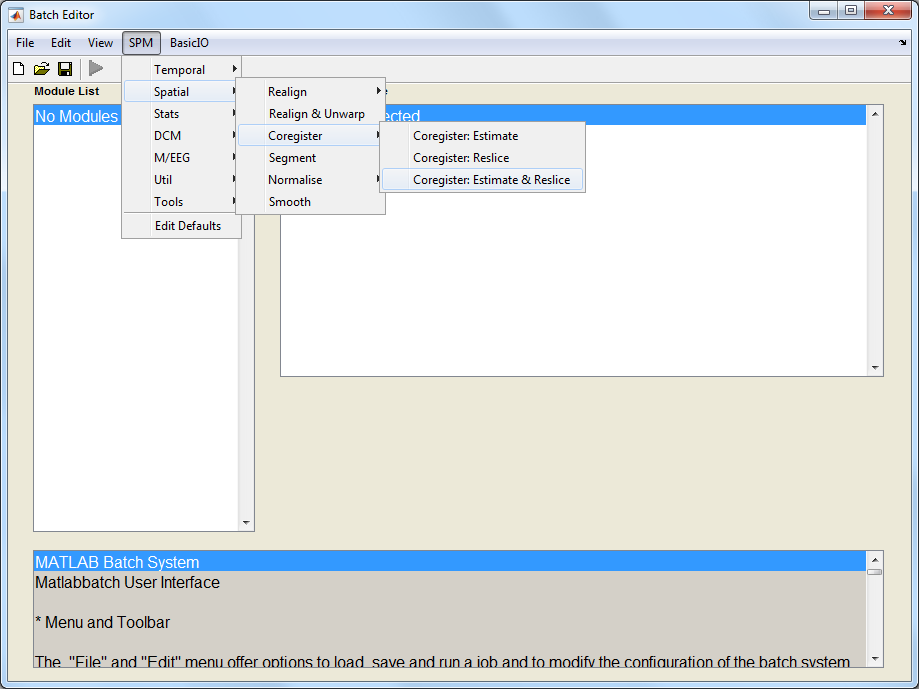

SPM and BasicIO application menus

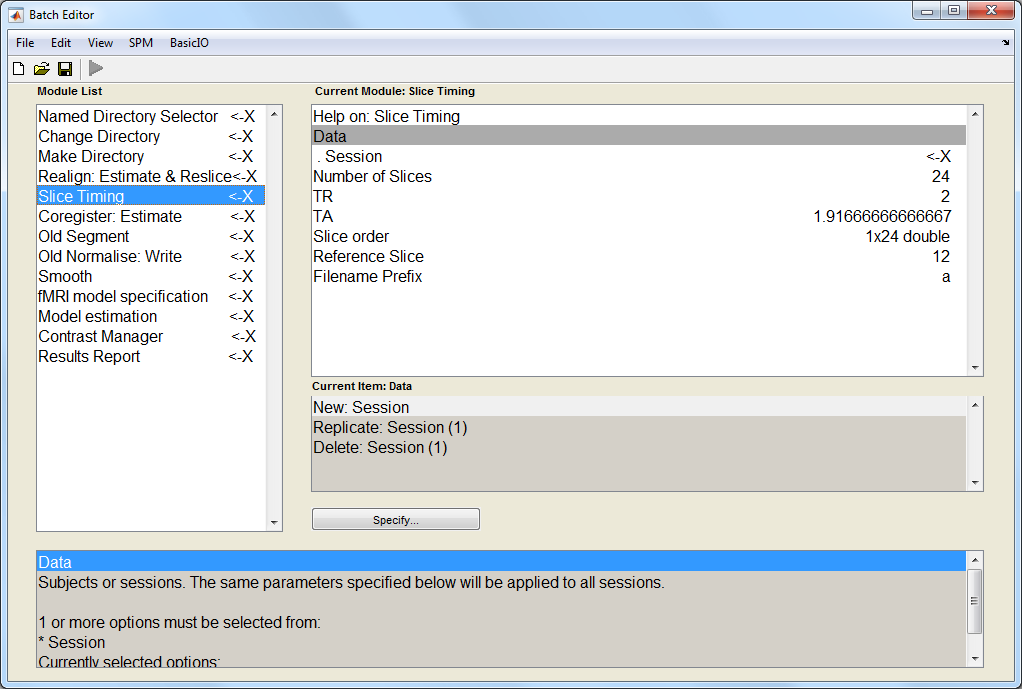

Configure subject-independent data

Now, go through the batch and configure all settings that are subject-independent (e.g. the name of the analysis directory, slice timing parameters) as described in chapter [Chap:data:faces]. Do not enter any data that is specific for a certain subject. The values that need to be entered are not repeated here, please refer to the corresponding sections in chapter [Chap:data:faces].

The file man/batch/face_single_subject_template_nodeps.m contains the batch after all modules have been added and subject-independent data has been entered.

Named Directory Selector

Input Name
Give this selection a name (e.g. “Subject directory”) - this name will be shown in the dependency list of this batch.

Directories
Add a new directory selector, but do not enter a directory itself.

Change Directory

Nothing to enter now.

Make Directory

New Directory Name
“categorical” - the name of the analysis directory. This directory will be created at batch run-time in the subject directory.

Realign: Estimate & Reslice

Data
Add a new “Session” item. Do not enter any files for this session now.

Slice Timing

Data
Add a new “Session” item. Do not enter any files for this session now.

Timing options
Enter data for “Number of slices”, “TR”, “TA”, “Slice order”, “Reference slice”.

Coreg: Estimate

Nothing to enter now.

Segment

Nothing to enter now.

Normalise: Write

Data
Add a new “Subject”. Do not enter any files now.

Writing Options
Adjust bounding box, voxel sizes, interpolation

Smooth

FWHM
Enter FWHM

fMRI model specification

Enter all data which is constant across subjects.

Timing parameters
Enter values for “Units for design”, “Interscan interval”, “Microtime resolution”, “Microtime onset”

Data & Design
Add a new “Session” item. Do not enter scans, conditions or regressors yet. They will be added as dependencies or subject specific inputs. If you want to make sure to remember this, you can highlight “Multiple conditions” and select “Clear Value” from the “Edit” menu. Do the same for “Multiple regressors”. This will mark both items with an <-X, indicating that something must be entered there.

Factorial design
Enter the specification for both factors.

Basis functions
Select the basis function and options you want to use.

Model estimation

Nothing to be entered yet for classical estimation.

Contrast manager

If you have selected the “Factorial design” option as described above, SPM will automatically create some contrasts for you. Here, you can create additional T- or F-contrasts. As an example, we will add an “Effects of interest” F-contrast.

Contrast session
Add a new “F-contrast” item.

Name
Enter a name for this contrast, e.g. “Effects of interest”.

Contrast vectors
Add a new “Contrast vector” item. F-contrasts can have multiple rows. You can either enter a contrast matrix in an “F contrast vector” entry, or enter them row by row. To test for the effects of interest (1 basis function and 2 derivatives for each of the four conditions) enter eye(12) as F contrast vector.

Replicate over sessions
This design does not have multiple sessions, so it is safe to say “No” here.

Results report

Reviewing individual results for a large number of subjects can be very time consuming. Results report will print results from selected contrasts to a PostScript file.

Contrast(s)
Enter Inf to print a report for each of the defined contrasts.

Data flow

In chapter [Chap:data:faces], each processing step was performed on its own. In most cases, output data was simply passed on from one module to the next. This scheme is illustrated in figure 1.2. Only the coloured items at the top of the flow chart are subject specific and need to be entered in the final batch. All arrow connections are subject-independent and can be specified in the batch template.

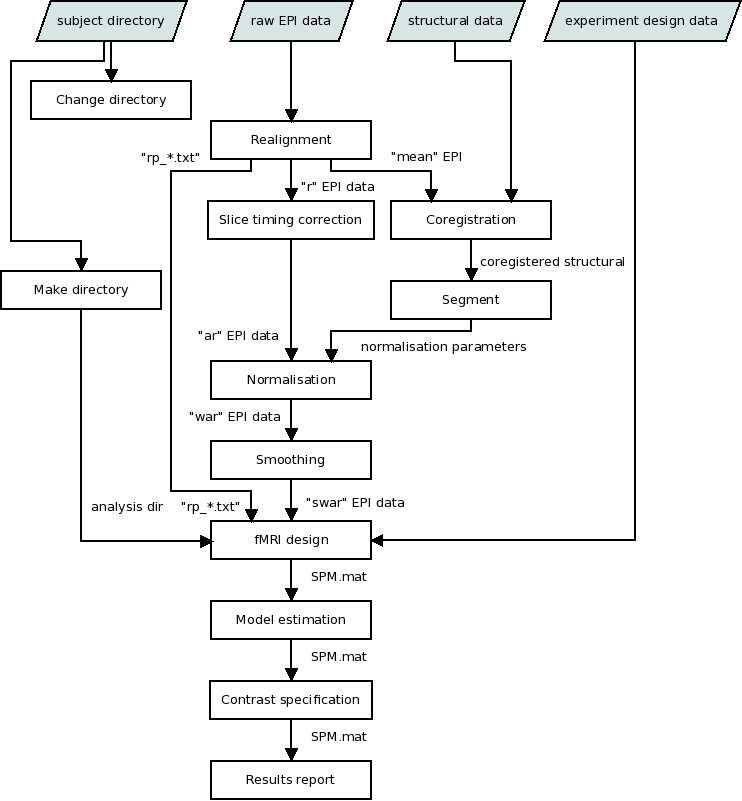

Flow chart for batch

Add dependencies

Based on the data flow in figure 1.2, modules in the batch can now be connected. The batch containing all dependencies can be found in man/batch/face_single_subject_template.m.

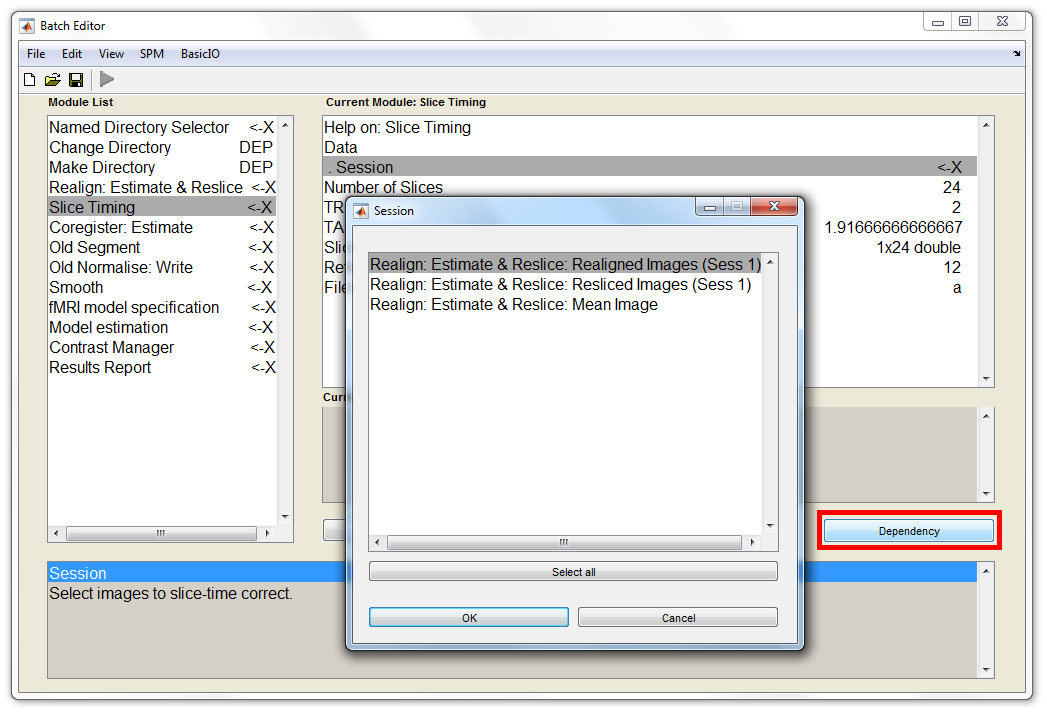

Dependency selection

Again, start editing at the top of the batch:

Named Directory Selector

Nothing to enter now.

Change Directory

Directory
Press “Dependency” and select “Subject directory(1)”. At run time, SPM will change to this directory before batch processing continues.

Make Directory

Parent Directory
Press “Dependency” and select “Subject directory(1)”. The “categorial” directory will be created in this directory.

Realign: Estimate & Reslice

Nothing to enter now.

Slice Timing

Session
Press “Dependency” and select “Resliced Images (Sess 1)”.

Coreg: Estimate

Reference Image
Press “Dependency” and select “Mean Image”.

Segment

Data
Press “Dependency” and select “Coregistered Images”. At run time, this will resolve to the coregistered anatomical image.

Normalise: Write

Parameter File
Press “Dependency” and select “Deformation Field Subj\(\rightarrow\)MNI (Subj 1)”.

Images to Write
Press “Dependency” and select “Slice Timing Corr. Images (Sess 1)”.

Smooth

Images to Smooth
Press “Dependency” and select “Normalised Images (Subj 1)”

fMRI model specification

Directory
Press “Dependency” and select “Make Directory ‘categorical’ “

Scans
Press “Dependency” and select “Smoothed Images”. Note: this works because there is only one session in our experiment. In a multisession experiments, images from each session may be normalised and smoothed using the same parameters, but the smoothed images need to be split into sessions again. See section 1.2 how this can be done.

Multiple regressors
Press “Dependency” and select “Realignment Param File (Sess 1)”.

Model estimation

Select SPM.mat
Press “Dependency” and select “SPM.mat File (fMRI Design&Data)”.

Contrast manager

Select SPM.mat
Press “Dependency” and select “SPM.mat File (Estimation)”.

Results report

Select SPM.mat
Press “Dependency” and select “SPM.mat File (Contrasts)”.

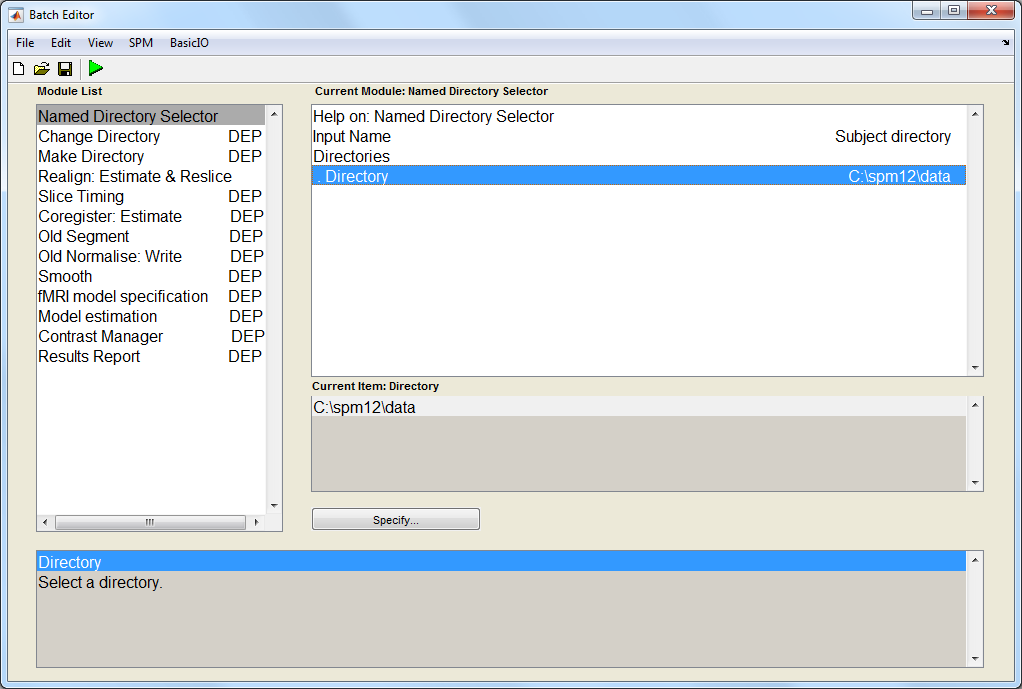

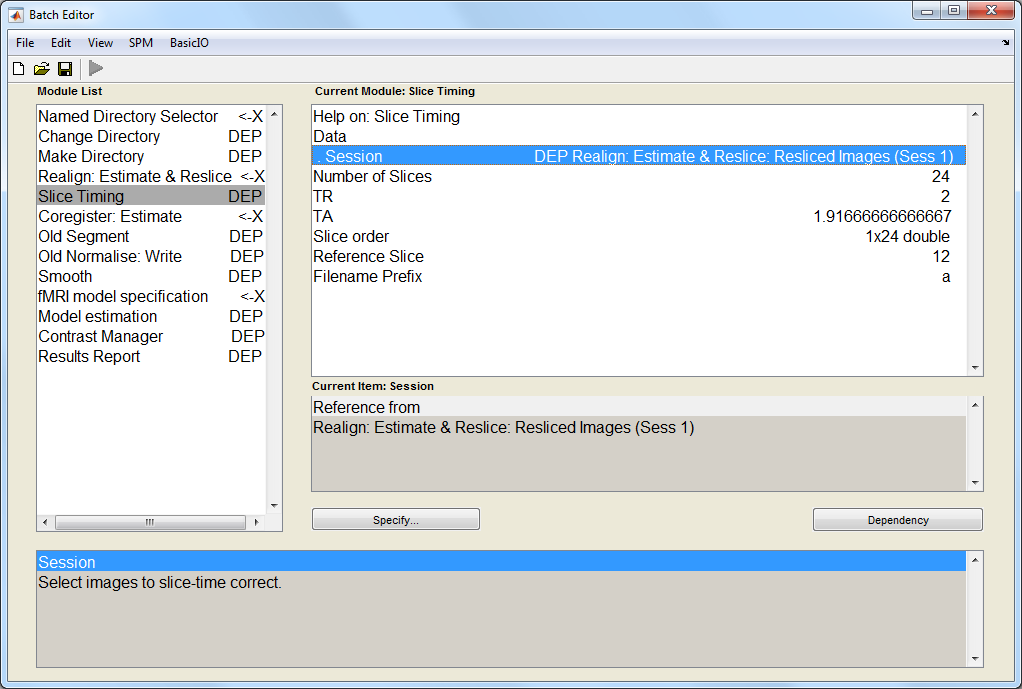

Entering subject-specific data

Now, only 4 modules should have open inputs left (marked with <-X). These inputs correspond to data which vary over the subjects in your study:

Named Directory Selector
Subject directory

Realign: Estimate & Reslice
Raw EPI data for the fMRI session

Coreg: Estimate
Anatomical image to be coregistered to mean EPI

fMRI model specification
Names, conditions and onsets of your experimental conditions, specified in a multiple conditions .mat file.

Using the GUI, you can now perform these steps for each subject:

  1. load the template batch

  2. enter subject-specific data

  3. save batch under a subject specific name.

After that, all batches for all subjects can be loaded and run at once.

This process can be automated using some basic MATLAB scripting. See section 1.2.3.2 for details.

All stages of batch entry

Advanced features

Multiple sessions

If an fMRI experiment has multiple sessions, some processing steps need to take this into account (slice timing correction, realignment, fMRI design), while others can work on all sessions at once (normalisation, smoothing).

Two modules in BasicIO help to solve this problem:

Named File Selector
Files can be entered here session by session. Note that this file selector selects all files (not restricted to images) by default. To select only images, set the filter string to something like .*nii$ or .*img$.

File Set Split
This module splits a list of files based on an index vector. Named file selector provides such an index vector to split the concatenation of all selected images into individual sessions again.

Processing multiple subjects in GUI

There are different ways to process multiple subjects in the batch editor:

  • Add the necessary processing steps when creating the job.

  • Create a per-subject template, save it and load it multiple times (i.e. in the file selector, add the same file multiple times to the list of selected files).

  • Use “Run Batch Jobs” from “BasicIO”

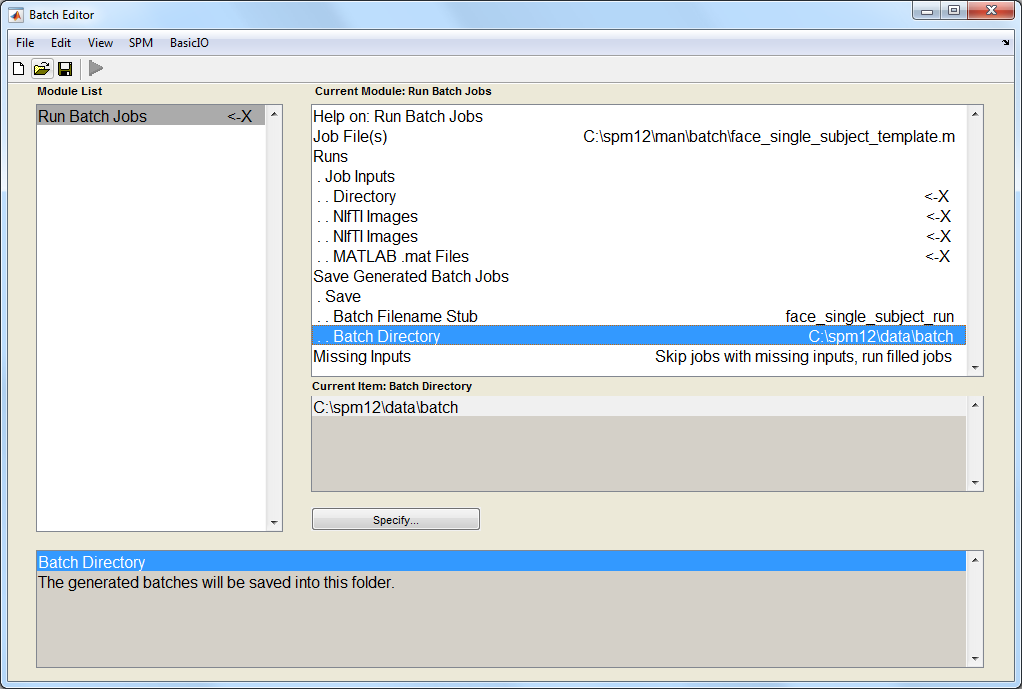

Using "Run Batch Jobs"

In all cases, the data for all subjects has to be entered through the GUI, and computation will be done for all subjects at once after all data is entered. There is an example job face_multi_subject_template.m that demonstrates the usage of “Run Batch Jobs” to run the single subject template job described above. Note that the order and type of inputs in the single subject template is important. Also, consistency checks are limited. If inconsistent data is entered, the job will fail to execute and return an error message.

To run this job for multiple subjects, simply repeat the “Runs” item as many times as necessary and fill in the required data.

Command line interface

The command line interface is especially useful to run multiple jobs at once without user interaction, e.g. to process multiple subjects or to combine separate processing steps. There is a “high-level” interface using spm_jobman, which combines “low-level” callbacks to cfg_util.

SPM startup in command line mode

During normal startup, SPM performs important initialisation steps. Without initialisation, SPM and its batch system will not function properly. Consequently, an initialisation sequence needs to be run before any batch job can be submitted.

MATLAB has several command line options to start without its GUI (-nodesktop) or even without any graphics output to a screen (-nodisplay). See MATLAB documentation for details.

To run SPM in -nodisplay mode, the file spm_defaults.m has to be modified. The line defaults.cmdline = 0; must be changed to defaults.cmdline = true;. In command line mode, SPM will not open any figure window except the “Graphics” window.

Within MATLAB, the following commands are sufficient to set up SPM

  1. spm('defaults', MODALITY) where MODALITY has to be replaced by the desired modality (e.g. 'fmri')

  2. spm_jobman('initcfg')

After executing these commands, any SPM functions and batch jobs can be run in the same MATLAB session.

Complete and run a pre-specified job

spm_jobman('run', job[, input1, input2 ...])

This interface takes a job and asks for the input to any open configuration items one after another. If a list of appropriate inputs is supplied, these will be filled in. After all inputs are filled, the job will be run. Note that only items without a pre-set value will be filled (marked with <-X in the GUI). To force a item to to be filled, use “Edit:Clear Value” in the GUI or set its value to '<UNDEFINED>' in the harvested job.

The job argument is very flexible, it can e.g. be a job variable, the name of a script creating a job variable, even a cell list of any mixture of variables and scripts. All job snippets found will be concatenated into a single job, the missing inputs will be filled and the resulting job will be run.

The batch system can generate a script skeleton for any loaded job. From the batch GUI, this feature is accessible via “File:Save Batch and Script”. This skeleton consists of a commented list of necessary inputs, a for loop to enter inputs for multiple runs or subjects and the code to initialise and run the job. An example is available in face_single_subject_script.m:

% List of open inputs
% Named Directory Selector: Directory - cfg_files
% Realign: Estimate & Reslice: Session - cfg_files
% Coreg: Estimate: Source Image - cfg_files
% fMRI model specification: Multiple conditions - cfg_files
nrun = X; % enter the number of runs here
jobfile = {fullfile(spm('dir'),'man','batch','face_single_subject_template.m')};
jobs = repmat(jobfile, 1, nrun);
inputs = cell(4, nrun);
for crun = 1:nrun
    % Named Directory Selector: Directory - cfg_files
    inputs{1, crun} = MATLAB_CODE_TO_FILL_INPUT;
    % Realign: Estimate & Reslice: Session - cfg_files
    inputs{2, crun} = MATLAB_CODE_TO_FILL_INPUT;
    % Coreg: Estimate: Source Image - cfg_files
    inputs{3, crun} = MATLAB_CODE_TO_FILL_INPUT;
    % fMRI model specification: Multiple conditions - cfg_files
    inputs{4, crun} = MATLAB_CODE_TO_FILL_INPUT;
end
spm('defaults','fmri');
spm_jobman('run',jobs,inputs{:});

The skeleton needs to be adapted to the actual data layout by adding MATLAB code which specifies the number of runs and the input data in the for loop.

Another example script and batch is available for the multimodal dataset, called multimodal_fmri_script.m and multimodal_fmri_template.m.

Modifying a saved job

In some cases, instead of using the serial interface it may be more appropriate to modify the fields of a saved or harvested job. By default, jobs are saved as MATLAB .mat files, but they can also be saved as .m files. These files contain a number of MATLAB commands, which will create a variable matlabbatch. The commands can be modified to set different values, add or remove options.
