Bayesian Model Inference ¶
This chapter describes the use of SPM’s Bayesian Model Inference capabilities. For a fuller background on this topic see (Penny et al. 2010). We illustrate the methods using a DCM for fMRI study of the language system.
Background¶
The neuroimaging data derive from an fMRI study on the cortical dynamics of intelligible speech (Leff et al. 2008). This study applied dynamic causal modelling of fMRI responses to investigate activity among three key multimodal regions: the left posterior and anterior superior temporal sulcus (subsequently referred to as regions P and A respectively) and pars orbitalis of the inferior frontal gyrus (region F). The aim of the study was to see how connections among regions depended on whether the auditory input was intelligible speech or time-reversed speech.

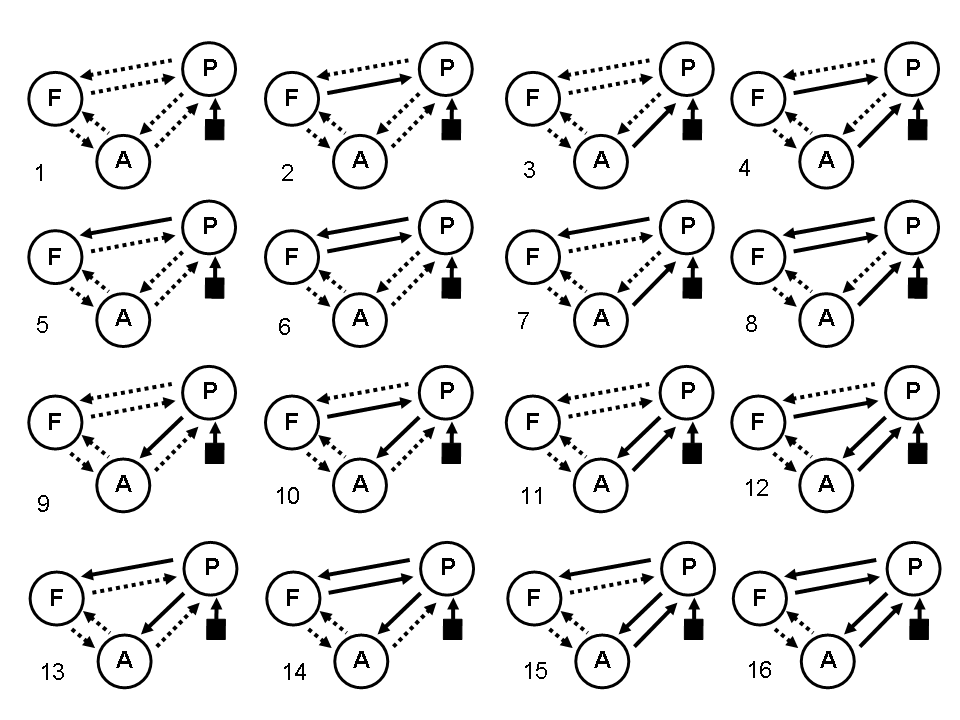

The basic DCM, from which all other models were derived, is shown in figure 1.1. Auditory input enters region P and the three areas have full intrinsic connectivity. The modulatory input, encoding whether or not the auditory stimulus was speech or reversed speech, was then allowed to modulate a subset of connections in the model. These are the forward and backward connections between P and F, and the forward and backward connections between P and A. As these are either present or absent this results in \(2^4=16\) different DCMs.
Data¶
An archive containing 16 DCMs for each of 12 subjects can be downloaded
from the SPM web page1. This archive is called dcm_bms.zip. When
you extract the data onto your computer a number of subdirectories will
be created - one for each of the 12 subjects. The 16 DCMs for each
subject are then available in these subject-specific directories. You
can load one of these into SPM and examine the information contained
therein.
These DCM files contain the usual information eg. the original time
series from each region of interest are available in DCM.xY(1) for
region 1, wherein DCM.xY(1).name='PSTS_6' indicates this is the
posterior temporal region. The estimated parameter values are available
in DCM.Ep. You should note that these DCMs were specified and
estimated using SPM revision 3894 (from May 2010) and that these DCM
structures differ from earlier SPM releases.
Also in the Zip archive is a file called model_space.mat. If you
load model_space, you will see that it contains a data structure
called subj with subfields ‘sess’ and then ‘model’. If you type eg.
subj(1).sess(1).model(1) you will see four further subfields
containing information about the first DCM for subject 1. This comprises
the filename (fname), the free energy approximation to the model
evidence (F), posterior mean parameters (Ep), and the posterior
covariance of parameters (Cp).
The use of a ‘model space’ file makes use of SPMs Bayesian model
comparison (BMC) routines much simpler. If this file is not specified it
will be automatically generated (from the DCM files) the first time you
use the BMC routines (see below). Alternatively, you can easily create
your own model space file. To get the current file to work on your
system you will need to change all of the filenames (fname) so that they
correspond to the positions of the DCM files in your filespace. You can
do this with the model_space_filenames function (also provided in the
Zip archive).
Analysis¶
After unzipping the archive, correct the model space filenames using the
commandsubj=model_space_filenames(subj,new_base_dir) where
new_base_dir is the name of the directory where you have unzipped the
archive. This should be something like
'C:\blah\blah\blah\dcm-base-files'. Then save subj back in the model
space file using save model_space subj.
Single Family¶
Now open SPM and in the Menu window go to Batch, SPM, DCM, Bayesian
Model Selection, Model Inference. This will open SPM’s batch editor.
Select an appropriate directory (eg. where you unzipped the archive),
highlight Load model space and select the model_space.mat file. For
inference method select ‘FFX’. Save the batch job as
ffx_all_models.mat, then press the green play button to run the job.

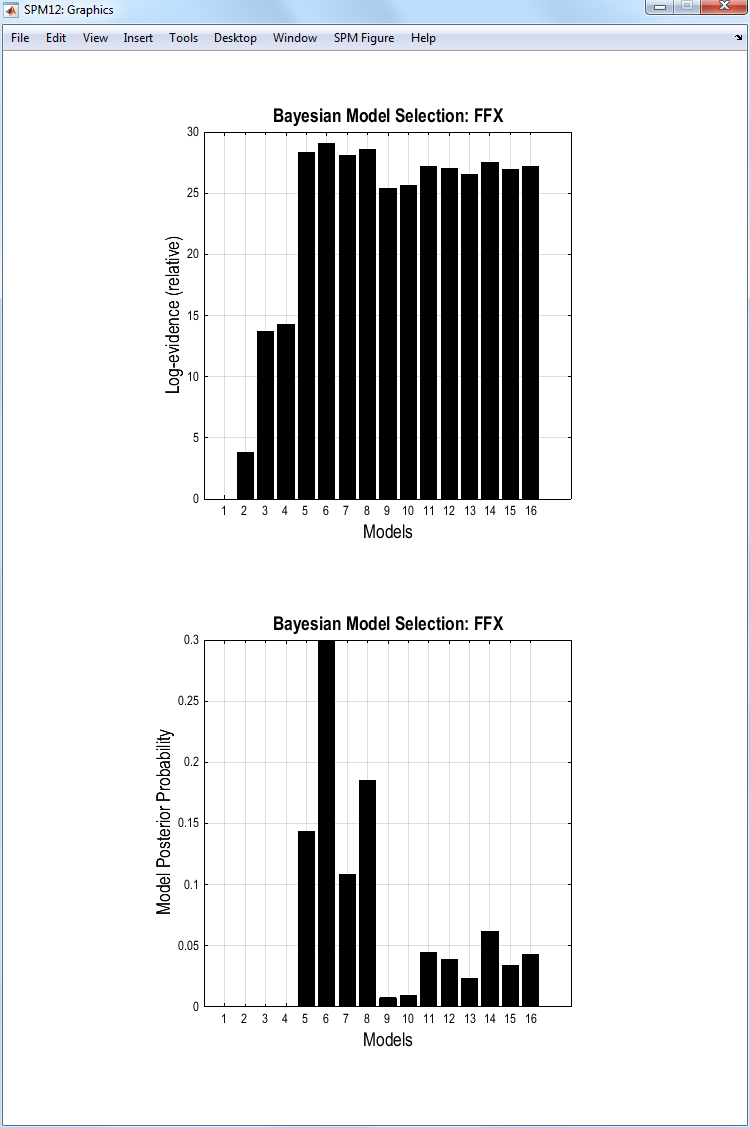

This will produce the
figure 1.2, showing that model 6 is the best
model.
We can now go back and load the ffx_all_models.mat job in the batch
editor (press the Batch button) and change the inference methods to RFX.

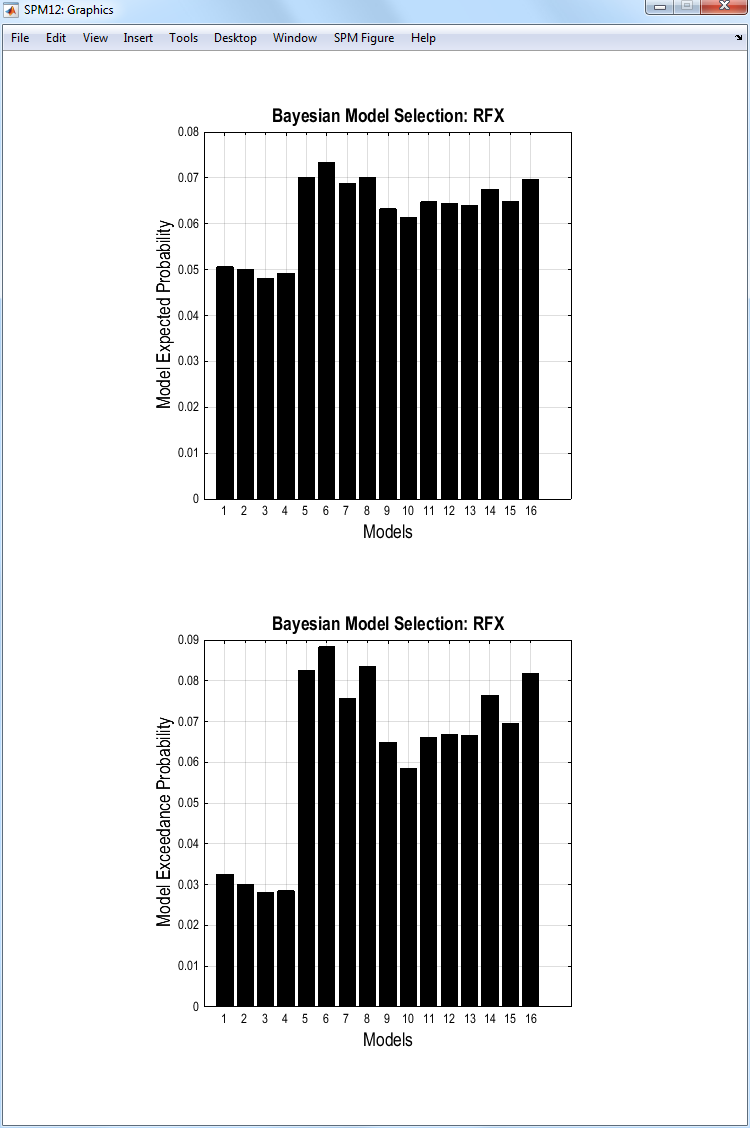

This will produce something like the results in
figure 1.3 (note that the RFX approach uses a
sampling procedure with a different random initial seed on each run, so
the results can vary slightly from run to run). Again, model 6 is the
best model, but not by much. These RFX results will be stored in the
same BMS.mat file as the FFX results.
Bayesian Model Averaging¶
Now go back into the batch editor and reload the ffx_all_models.mat
job. Highlight BMA, and select Choose family (instead of ‘Do not
compute’). Accept the ‘Winning Family’ option. The BMA results will be
saved in the same BMS.mat file as the previous analyses. Now go ahead
and press the green play button. SPM will do the FFX model inference
(again), but will also implement a weighted average of the model
parameters where the weights are given by the evidence for each model,
as described in (Penny et al. 2010). After the averaging is complete,
SPM will report the number of models in Occam’s window. This should be
10 models (models 5,6,7,8,11,12,13,14,15,16).

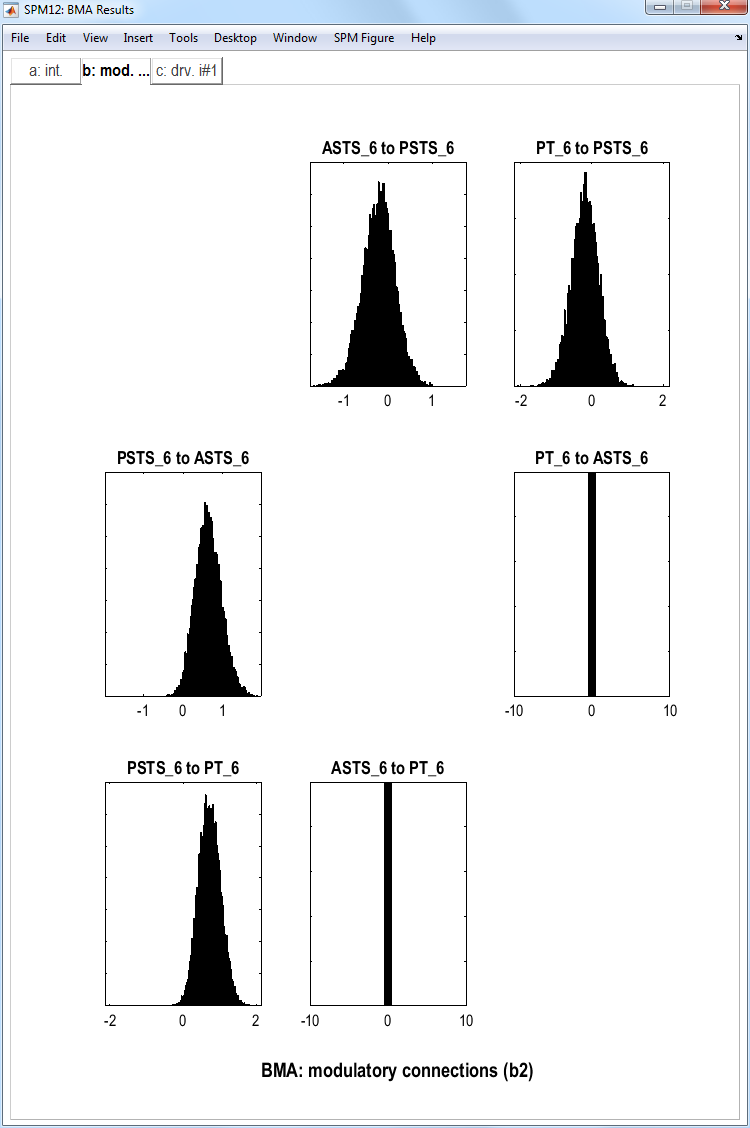

To look at the BMA results, go to the Menu window and press the Dynamic Causal Modelling button. Then select Average, select BMA, and then the BMS.mat file just created. If you then highlight the tab (top left) to select the modulatory variables you should get the plot shown in figure 1.4.
Family level inference¶
The results so far have made no use of SPM’s family inference procedure. Or rather, they have, but have assumed that all models belong to the same family.
Open the ffx_all_models.mat batch file again, highlight Family
inference and select Load family. Highlight Load family and select the
pf_family.mat file contained in the Zip archive. This comprises two
families (i) those with a forward connection from P to F (‘PF’), and
(ii) those without it (‘No PF’). Set the BMA option to Do not Compute.
Select a new directory you have created for this analysis (eg pf-family)

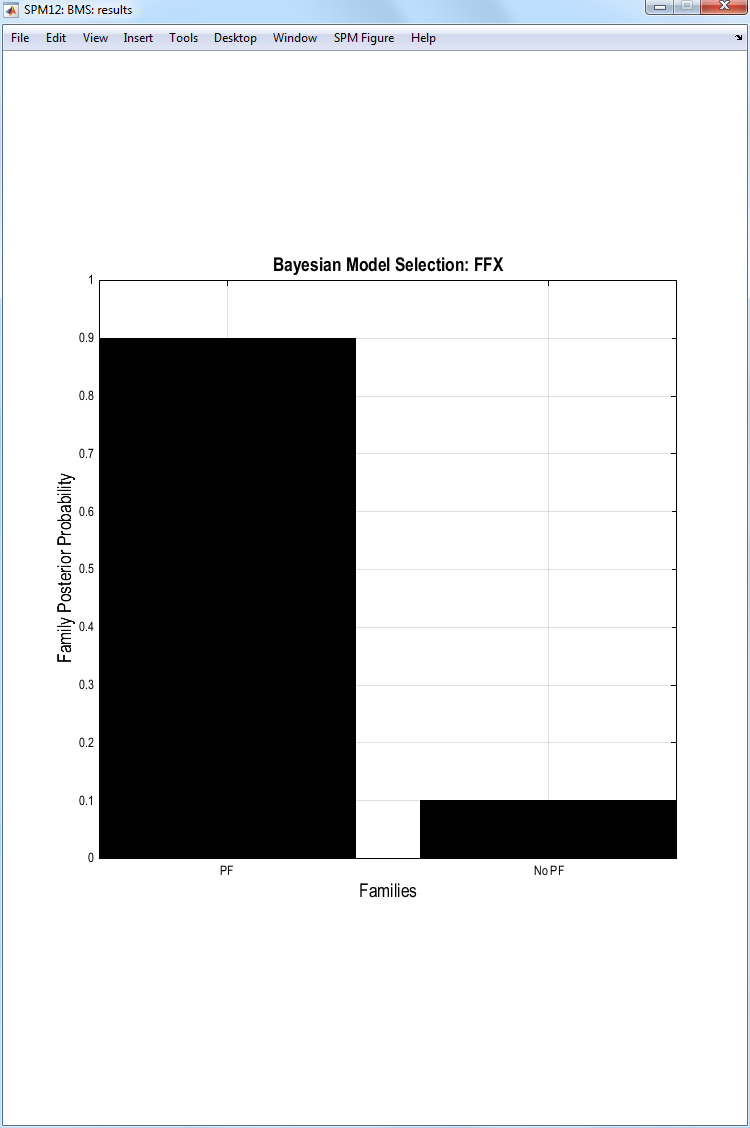

and run the job. SPM will create the family level inference plot shown
in figure 1.5. This gives a 90% posterior probability
to models with the P to F connection.

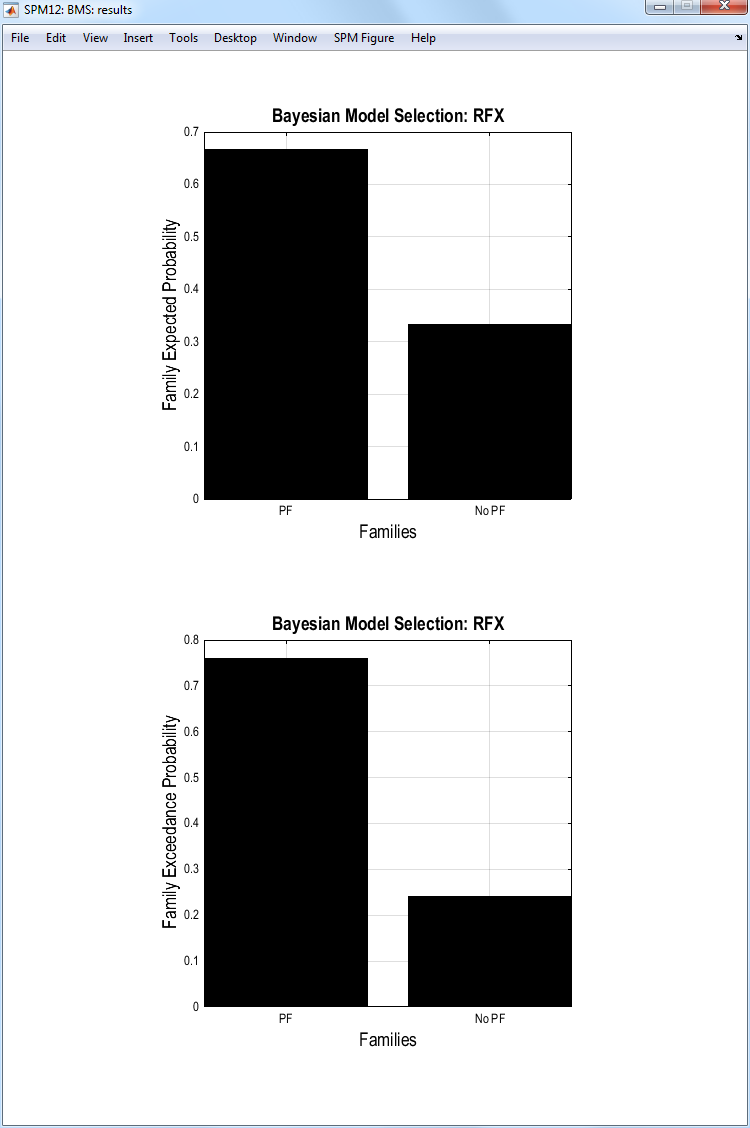

We will now repeat the analysis but with RFX inference. You should see a result similar to that shown in figure 1.6.
Summary Statistics and Group Analyses¶
The group mean DCM parameters can be easily obtained from the MATLAB
command window by loading the BMS.mat file and then typing:
BMS.DCM.ffx.bma.Ep.
The subject specific mean DCM parameters can be obtained as follows:
BMS.DCM.ffx.bma.Eps(n), where \(n\) is the subject number. For
random-effects change ffx to rfx.
If we are interested in the modulatory connection from region 1 to
region 3 (that is modulated by the second input), then the mean value of
this for Subject 10 is given byBMS.DCM.ffx.bma.Eps(10).B(3,1,2) (which
should be 0.7475). The mean connection values for all subjects (12) can
be gotten with the MATLAB syntax
for i=1:12, b(i) = BMS.DCM.ffx.bma.Eps(i).B(3,1,2); end.
These subject specific mean parameters can then act as summary
statistics for a standard group analysis. For example to look for
significant differences between eg. a control group and a patient group
in a modulatory parameter one would implement a two-sample t-test on
data from the appropriate entries in the mean_bs matrices. Similarly,
if one has 3 groups one would use a 3-level ANOVA.
BMS.mat file¶
The BMS structure saved in BMS.mat file contains the following variables2:
BMS.DCM.ffx/rfx¶
(fixed-effects (FFX) / random-effects (RFX) analysis)
| .data | path to model_space.mat file (see below). |
| .F_fname | path to file containing the log evidence matrix, F, (if this option is specified). |
| .F | matrix of log model evidences for all subjects and models, [nsub \(\times\) nm]. |
| .SF | vector of summed log evidences over subjects [1 \(\times\) nm]. |
| .model | results from model level inference (see below). |
| .family | results from family level inference (see below). |
| .bma | results from Bayesian model averaging (see below). |
Model level results¶
Fixed-effects:
| model | ||
| .prior | model priors, \(p(m)\), [1 \(\times\) nm]. | |
| .subj_lme | log model evidence matrix, [nsub \(\times\) nm]. | |
| .like | model likelihoods, $p(Y | |
| .posts | model posterior probabilities, $p(m |
Random-effects (different from fixed-effects):
| model | ||
| .alpha0 | initial Dirichlet parameters (prior counts), \(\alpha_0\), [1 \(\times\) nm]. | |
| .exp_r | model posterior means, $<r | |
| .xp | model exceedance probabilities, \(\psi_m\) [1 \(\times\) nm]. | |
| .r_samp | samples from the model posterior density, $p(r | |
| .g_post | posterior model probabilities for subject n and model m, $p(m_n |
Family level results¶
Fixed-effects:
| family | ||
| .names | family names, ex: \(\{\)‘F1’, ‘F2’, ‘F3’\(\}\). | |
| .partition | partition vector assigning each model to a family [1 \(\times\) nm]. | |
| **.infer ** | inference method (‘ffx’ or ‘rfx’). | |
| .prior | family priors, \(p(f_k)\), [1 \(\times\) nfam]. | |
| .post | family posterior probabilities, $p(f_k | |
| .like | family likelihoods, $p(Y |
Random-effects (different from fixed-effects):
| family | ||
| .Nsamp | number of samples used in Gibbs sampling (default = 20000). | |
| **.prior ** | family type of priors (‘F-unity’, \(\alpha_0=1\), for each family, is the default; | |
| other option, ‘M-unity’, \(\alpha_0=1\), for each model) . | ||
| .alpha0 | initial values of the Dirichlet parameters (prior counts), \(\alpha_{prior}(m)\), [1 \(\times\) nfam]. | |
| .s_samp | samples from family posterior density, $p(s | |
| .exp_r | family posterior means, $<s_k | |
| .xp | family exceedance probabilities, \(\psi_k\), [1 \(\times\) nfam]. |
Bayesian model averaging (BMA)¶
Fixed-effects:
| bma | ||
| .nsamp | number of samples used to average parameters (default = 10000). | |
| .oddsr | posterior odds ratio, \(\pi_{OCC}\), (number of models in Occam’s window, | |
| default = 0). | ||
| .Nocc | number of models in Occam’s window. | |
| .Mocc | index of models in Occam’s window, [1 \(\times\) nm]. | |
| .indx | index of models in Occam’s window (different for each subject in RFX), | |
| [1 \(\times\) nm]. | ||
| .a | samples from posterior density over DCM.a parameters [dima \(\times\) nsamp]. | |
| .b | samples from posterior density over DCM.b parameters [dimb \(\times\) nsamp]. | |
| .c | samples from posterior density over DCM.c parameters [dimc \(\times\) nsamp]. | |
| .d | samples from posterior density over DCM.d parameters [dimd \(\times\) nsamp]. | |
| .mEp | mean DCM parameters [1 \(\times\) 1 struct]. | |
| .sEp | standard deviation of DCM parameters [1 \(\times\) 1 struct]. | |
| .mEps | mean DCM parameters per subject [1 \(\times\) nsub struct]. | |
| .sEps | standard deviation DCM parameters per subject [1 \(\times\) nsub struct]. |
Random-effects - same variables as in fixed-effects.
model_space.mat file¶
This structure is created automatically if it doesn’t exist in the chosen directory and can be loaded for subsequent analyses as a faster option to reading the DCM.mat files. The model_space.mat file contains the following structure:
| subj(nsub).sess(nsess).model(nm) | ||
| .fname | path to DCM.mat file. | |
| .F | log-evidence (free energy). | |
| .Ep | parameter estimates: conditional expectation, | |
| [np \(\times\) 1]. | ||
| .Cp | parameter estimates: conditional covariance, | |
| [np \(\times\) np]. |
For a detailed description of all the variables and methods please see (Penny et al. 2010) and (Stephan et al. 2009).
-
Bayesian comparison of Dynamic Causal Models: http://www.fil.ion.ucl.ac.uk/spm/data/dcm_bms/ ↩
-
nm = number of models; nfam = number of families; nsub = number of subjects; nsamp = number of samples; dima/b/c/d = dimensions of a/b/c/d DCM parameters; np = number of model parameters; nsess = number of sessions. ↩
