Control Flow

If/Else

Sometimes we need computers to do something different depending on some answer. This is when if/else statements come in. Here is the first very simple example. Notice that the if statement is balanced with an end statement. It is conventional to indent instructions between the if and the end in order to make code easier to read. Different people use different amounts of indenting (or tabs), but 4 spaces is typical.

number = input('Input a number between 0 and 10: ');
if number<0 || number>10
    disp('That number is out of range');
end

Here’s a slightly more complex example, which uses an else statement that determines what is done when the if statement is false:

number = input('Input a number between 0 and 10: ');
if number<0 || number>10
    disp('That number is out of range');
else
    disp('That number is acceptable.')
end

We can also use elseif statements, as in:

number = input('Input a number between 0 and 10: ');
if number<0
    disp('That number is negative');
elseif number>10
    disp('That number is too big.')
else
    disp('That number is acceptable.')
end

For

for statements are used when we want to repeat some operations. Again, they are terminated with an end statement, and the convention is to use indenting. Ths is a simple example:

count = 0;
for i=1:10
    count = count + i;
    disp(count)
end

Here’s a slightly more complicated piece of code for doing matrix multiplication, which is something that we will come to later. First, we set up two matrices, A and B:

A = randn(3,5);
B = randn(5,4);

The following code then checks the dimensions of the matrices, and proceeds to multiply them if it is possible. The results go into a third matrix called C.

if ndims(A)>2 || ndims(B)>2
    error('Arrays have too many dimensions.');
elseif size(A,2) ~= size(B,1)
    error('Dimension mismatch.');
end

M = size(A,1);
K = size(A,2);
N = size(B,2);
C = zeros(M,N);
for m=1:M
    for n=1:N
        for k=1:K
            C(m,n) = C(m,n) + A(m,k)*B(k,n);
        end
    end
end

The above is just for illustration. In practice, matrix multiplications should not be done like this in MATLAB. It is an interpreted language, so it is much more efficient to use built-in functions whenever possible.

While

Another way to control the flow of a program is to use a while loop.

number = input('Input a number between 0 and 10: ');
while number<0 || number>10
    number = input('Try again. Input a number between 0 and 10: ');
end
disp(number)

It is also possible to break out of while and for loops using break. Without the break, the following would be an infinite loop:

while true
    number = input('Input a number between 0 and 10: ');
    if number>=0 && number<=10
        break
    end
end
disp(number)

Using Functions

Series of instructions are often bundeled together into functions. In MATLAB, these have input arguments and output arguments. Many functions only return a single output argument. For example, sin is a built-in function that returns a single output. In the following example, x is the input argument, and y is the output argument.

x = 0:0.01:2*pi;
y = sin(x);
plot(x,y)

Other functions may return several output arguments, in which case these need to be surrounded by square brackets. An occasionally useful example might be the following, which does something called singular value decomposition (which we may return to later)

X = randn(5,3);
[U,S,V] = svd(X)
disp, which you encountered earlier, is an example of a function that doesn’t have output arguments. Other functions don’t have input arguments. Also, functions can change their behaviour depending on how many input and output arguments are specified. For example:
s = svd(X)

Help about using a functions can be found by typing help followed by a space and then the name of the function.

Element-by-element Functions

Arrays can be added and subtracted, providing their dimensions are compatible. The simplest case is when the arrays are the same size, such as this example:

Y = randn(3,4);
X = randn(3,4);
disp(X+Y)
Addition and subtraction also work if one of the dimensions is 1. Try this example:
Y = 1:8;
X = (1:3)'*10;
disp(X+Y)
disp(X-Y)

Elements of arrays can be multiplied and divided in a similar way, but to distinguish it from matrix multiplication or matrix division, the notation uses .* or ./.

disp(X.*Y)
disp(X./Y)
Note that +, -, .* and ./ are actually a convenient shorthand for the plus, minus, times and rdivide functions.
disp(plus(X,Y))
disp(minus(X,Y))
disp(times(X,Y))
disp(rdivide(X,Y))

There are a load of other mathematical operations that can also be applied element-by-element, such as sin, cos, tan, log and exp.

Other Functions of arrays

Some functions that can be applied to arrays, which don’t work independently among the elements, include sum, mean, prod (product), cumsum (cumulative sum) and cumprod (cumulative product).

X = rand(2,10);
disp(sum(X,2))
disp(prod(X,2))
disp(cumsum(X,2))
disp(cumprod(X,2))

There are also the matrix operations, which will be covered later.

Creating Functions

You can create your own functions by editing a file, which ends in the prefix .m, that is somewhere in the search path that MATLAB uses. You can see this search path by typing:

path
The path can also be viewed and edited via a widgit at the top of the MATLAB window. Clicking HOME and then the Set Path widget brings up a user interface for seeing and changing this search path (or at least it does on my computer).

If you save the following test as a file called quadsol.m, then it will give you the solutions to a quadratic of the form a*x^2 + b*x + c == 0, which you may remember from school:

function [x1, x2] = quadsol(a, b, c)
% Solution to a*x^2 + b*x + c == 0
% FORMAT [x1,x2] = quadsol(a,b,c)
tmp = sqrt(b.^2 - 4*a.*c);
x1  = (-b + tmp)./(2*a); % First solution
x2  = (-b - tmp)./(2*a); % Second solution

The first line of the text defines the input (a, b and c) and output (x1 and x2) arguments. This is followed by a block of lines that begin with %. Normally any text following a % will be a comment, but in a .m file, the first block of comments serves as the documentation. You can see this documentation by typing:

help quadsol
Subsequent lines are the computations themselves. Note that the code should allow a, b and c to be arrays - providing their dimensions are compatible. In the code, + and - are used in a straightforward way. Element-wise multiplications and divisions are done with .* and ./. The reason for this is to distinguish them from * and /, which denote matrix multiplications and divisions in MATLAB. You will learn about these later. The ^ symbol denotes “to the power of”, but “.^” is used here in order to do elementwise powers.

The function you have created can be called by (for example):

[r1,r2] = quadsol(4,3,-2)

Function Handles

MATLAB also includes a way to create simple functions that return a single argument. This can be done using @. For example, typing the following into MATLAB will create a function called quad:

quad = @(x,a,b,c) a.*x.^2 + b.*x + c;

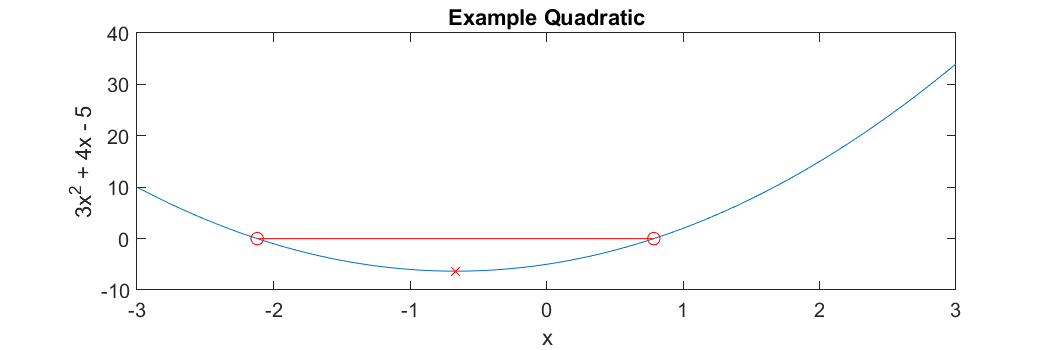

This following gives an example of how this function may be used:

x = (-3:0.01:3)';

% Parameters of the quadratic
a =  3;
b =  4;
c = -5;

[x1, x2] = quadsol(a, b, c); % Points where x==0
x_minmax = -b/(2*a); % Value of x that gives the minimum/maximum of a quadratic

plot(x, quad(x,a,b,c), '-',  [x1 x2], quad([x1 x2], a, b, c), 'ro-', x_minmax, quad(x_minmax,a,b,c),'rx')
xlabel('x')
ylabel('3x^2 + 4x - 5')
title('Example Quadratic')
