First-level multiple regression

This section describes fitting a multiple regression model to preprocessed data from a single participant. Normally, statistical findings from a single individual are not very useful for informing us about brain function in the general population, so a group analysis of data from several participants will be done later. The main outcome required at this stage is a “contrast image” from the subject, which can be entered into the group analysis.

Before you begin

Before setting up the analysis we must first load the stimulus onset times into MATLAB. A separate file has been created that contains the stimulus onset times for each of the two runs. To load these, you would type the following (obviously after changing XX to the appropriate participant number, and possibly changing the name of the folder depending which directory you are working in):

r1 = load('func/sub-XX_ses-mri_task-facerecognition_run-01_events.mat');
r2 = load('func/sub-XX_ses-mri_task-facerecognition_run-02_events.mat');

Loading the data will give two data structures (called r1 and r2) in the MATLAB workspace. These each contain three fields called famous, scrambled and unfamiliar. Each field contains a vector of onset times (in seconds).

The results from fitting the multiple regression are saved into a folder, which needs to be created beforehand. How you create this empty folder (and what you call it) is up to you.

Model specification

Now press the Specify 1st-level button on the “Menu” window. This will call up an fMRI specification job in the batch editor window. Then

  • For Directory, select the folder (directory) you created for saving the result into.
  • In the Timing parameters option,
    • Highlight Units for design and select Seconds. This should be self-explanatory.
    • Highlight Interscan interval and enter 2. Again, this should be self-explanatory because the TR is two seconds.
    • Leave Microtime resolution at the default value of 16. This option is there to simplify convolving a vector of ones and zeros with the haemodynamic response function.
    • leave Microtime onset at the default value of 8. This sets time zero to the middle slice in time.
  • Highlight Data and Design and select New Subject/Session twice to set up the analysis of the two fMRI runs.
    • For the first run (Subject/Session):
      • Highlight Scans and use SPM’s file selector to choose all the smoothed, spatially normalised and realigned volumes in the first run (i.e., all volumes in func/swrsub-XX_ses-mri_task-facerecognition_run-01_bold.nii). To select all the volumes in a file, change the field that says 1 to NaN.
      • Highlight Conditions and select New condition three times.
        • Open the first newly created Condition option and
          • Highlight Name and enter Famous. This is simply giving the condition an interpretable name.
          • Highlight Onsets and enter r1.famous (to specify the run 1 onset times for famous faces that you loaded into MATLAB earlier).
          • Highlight Durations and enter 1, because the duration of the pictures on screen was about a second.
          • Leave Time Modulation alone. This would be for including additional regressors that model possible habituation/familiarisation effects.
          • Leave Parametric Modulations alone. This would be for including additional regressors that modulate the amlitudes of the events.
          • Leave Orthogonalise modulations alone. It is not relevant because no moduations are included.
        • Open the second newly created condition and
          • Highlight Name and enter Unfamiliar.
          • Highlight Onsets and enter r1.unfamiliar.
          • Highlight Durations and enter 1.
          • As previously, no modulations are included.
        • Open the third newly created condition and
          • Highlight Name and enter Scrambled.
          • Highlight Onsets and enter r1.scrambled.
          • Highlight Durations and enter 1.
          • As previously, no modulations are included.
      • Leave Multiple conditions alone. This is a short-cut for those who can set up MATAB data structures.
      • Leave Regressors alone. This allows additional confounding effects to be included in the model. A potentia use case might be to ignore a corrupted time point by including a vector of all zeros - apart from a 1 corresponding to the time point to ignore.
      • Double-click Multiple regressors and specify the text file containing the estimated motion parameters for the first fMRI run (func/rp_sub-XX_ses-mri_task-facerecognition_run-01_bold.txt). This is to remove variance that has a simple linear relationship with head motion.
      • High-pass filter can be left at the default setting of 128 seconds. This specifies how many cosine basis functions should be included to model out slow drifts over time. Although included in the multiple regression, these basis functions are not dispayed by SPM.
    • Now you need to specify a similar set of information for the second fMRI run. This should be straightforward, but if there were nine runs, you would begin to see why scripting could be useful.
  • Ignore Factorial design.
  • Click on Basis Functions and choose
    • Canonical HRF.
      • Click on Model derivatives and select Time derivatives. This allows more leeway in the timings of the events.
  • Ignore Model Interactions (Volterra). This is a bit too complicated for beginners.
  • Leave Global normalisation at its default value of None. This would allow all the fMRI volumes to be rescaled so they have the same average intensity, but we do not want this.
  • Leave Masking threshold at its default value of 0.8. This is a crude heuristic for deciding which parts of the data to include in the analysis.
  • Leave Serial correlations at the default setting of AR(1). This option is for dealing with the fact that noise in fMRI is correlated over time. Data with shorter TRs might need the FAST option, but AR(1) is reasonable for two second TRs.

Save the job as model_spec_job.m and press the Run button.

SPM will then write an SPM.mat file to the folder you specified. It will also show the design matrix on the A4-shaped window.

At this stage it is advisable to check your model specification using SPM’s review facility which is accessed via the Review button. This brings up a Design tab on the “Interactive” window clicking on which produces a pull-down menu. You can play around with the various options without doing any harm.

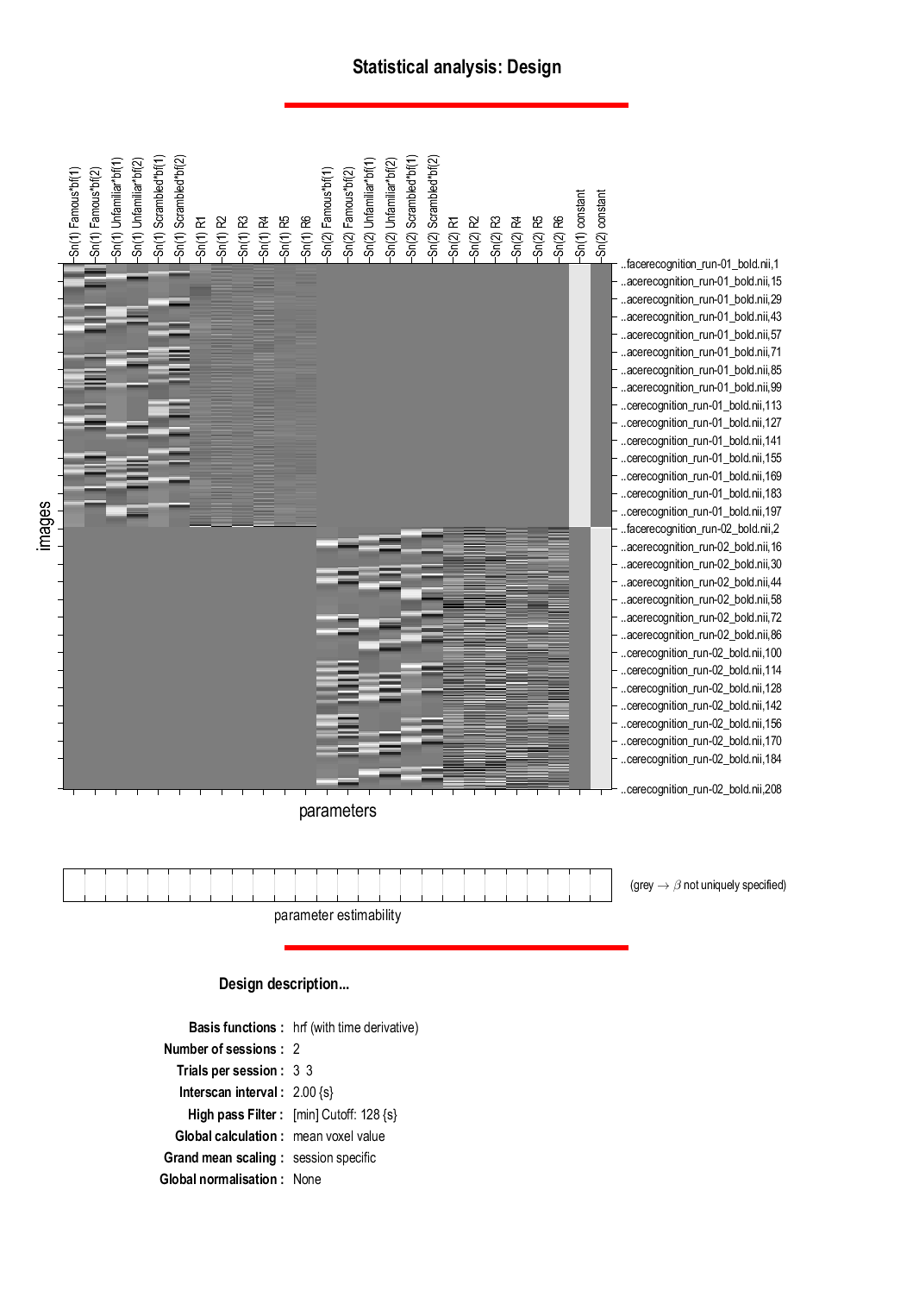

Design matrix

Model estimation

Press the Estimate button on the “Menu” window. This will call up the specification of an fMRI estimation job in the batch editor window. Then

  • Highlight the Select SPM.mat option and then choose the SPM.mat file saved in the folder you specified.
  • Leave Write residuals as No so as not to clutter the results directory with lots of unnecessary files.
  • Leave the Method as Classical.

Save the job as model_est_job.m and press Run button.

SPM will make a number of changes to the SPM.mat file, and write a number of additional files into the selected folder. These include - mask.nii is a binary image of ones and zeros that indicate which parts of the image were analysed. - beta_0001.nii through to beta_0026.nii. Each of these contains the parameter estimates for the corresponding column of the design matrix. - ResMS.nii. This contains a map of the residual sum of squares at each voxel. - RPV.nii. This contains a map of the “resels” (resolution elements) per voxel, which indicates the smoothness of the residuals at each location. This is derived from the correlations among neighbouring voxels.

Inference

Three examples of statistical inference are provided here.

Faces - Scrambled

Press the Results button on the “Menu” window and select the SPM.mat file. This will invoke the contrast manager. This is where you define what you’d like to ask of the data by specifying contrast vectors (for t statistics) or matrices (for F statistics).

We’ll start by asking where the BOLD signal is higher for faces versus scrambled faces in both sessions. To formulate the contrast vector, we’ll recap what all the columns of the design matrix encode.

  1. Famous faces in run 1
  2. Temporal derivatives for famous faces in run 1
  3. Unfamiliar faces in run 1
  4. Temporal derivatives for unfamiliar faces in run 1
  5. Scrambled faces in run 1
  6. Temporal derivatives for scrambled faces in run 1
  7. Confounding motion effects in run 1 (x translation)
  8. Confounding motion effects in run 1 (y translation)
  9. Confounding motion effects in run 1 (z translation)
  10. Confounding motion effects in run 1 (pitch)
  11. Confounding motion effects in run 1 (roll)
  12. Confounding motion effects in run 1 (yaw)
  13. Famous faces in run 2
  14. Temporal derivatives for famous faces in run 2
  15. Unfamiliar faces in run 2
  16. Temporal derivatives for unfamiliar faces in run 2
  17. Scrambled faces in run 2
  18. Temporal derivatives for scrambled faces in run 2
  19. Confounding motion effects in run 2 (x translation)
  20. Confounding motion effects in run 2 (y translation)
  21. Confounding motion effects in run 2 (z translation)
  22. Confounding motion effects in run 2 (pitch)
  23. Confounding motion effects in run 2 (roll)
  24. Confounding motion effects in run 2 (yaw)
  25. Constant term for run 1
  26. Constant term for run 2

Identifying voxels where BOLD is higher for faces versus scrambled involves taking the average of the beta values from the famous and unfamiliar faces and subtracting the beta values for the scrambled faces, and doing this for both runs. Note that the beta values corresponding with the temporal derivatives are ignored. This can be considered as taking a weighted sum of the beta values, where the weights are as follows:

0.5 0 0.5 0 -1 0  0 0 0 0 0 0  0.5 0 0.5 0 -1 0  0 0 0 0 0 0  0 0
This is the contrast vector that would be used for a t test to identify these differences.

When the contrast manager is opened, you can define a new t contrast in the contrast manager by selecting t contrast and hitting the Define new contrast button (see the figure below for an example).

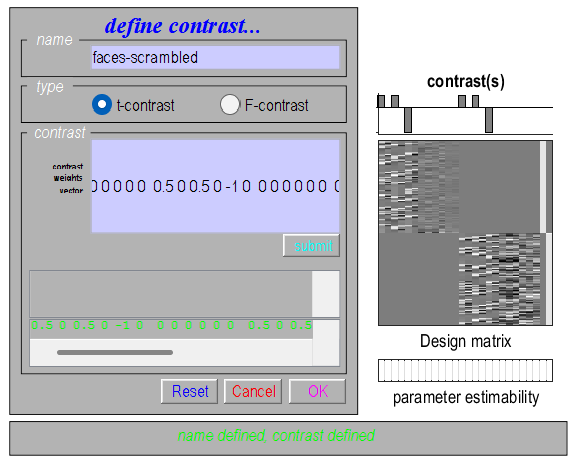

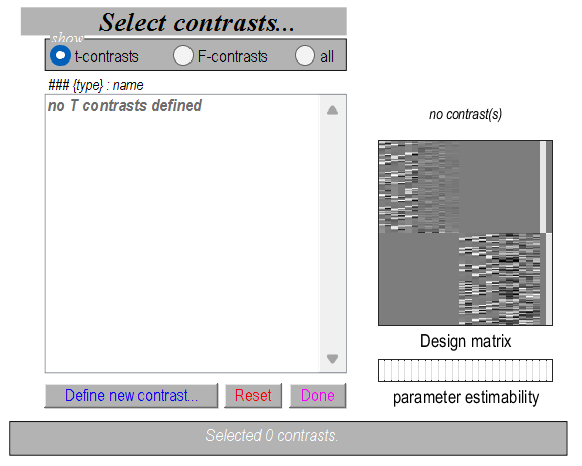

The SPM contrast manager.

You can then enter a suitable name for the contrast, along with the contrast vector itself, before clicking submit (to see a visualisation of the contrast vector) and then OK.

Defining a t contrast vector.

This will then lead to a few questions in the “Interactive” window:

  • The first is about whether to apply masking, which will allow you to reduce the search volume and therefore reduce the severity of the corrections for multiple comparisons. This is most useful if you have a prior hypothesis about the involvement of certain brain regions. To begin with, select none.
  • The next is whether you’d like p value adjustment to control for family-wise error or not. By selecting FWE, you see only those regions that have survived after correction for multiple comparisons.
  • The next is the p value (FWE) that you consider to be statistically significant (the alpha value). The convention is usually 0.05, but this is purely a convention and has no empirical or theoretical justification.
  • The final question is & extent threshold (voxels). This is an option to filter out any tiny blobs, but a value of 0 is suggested.

This then leads on to the results being shown in the “Graphics” (A4 shaped) window. The results you obtain may look like those shown in the figure below.

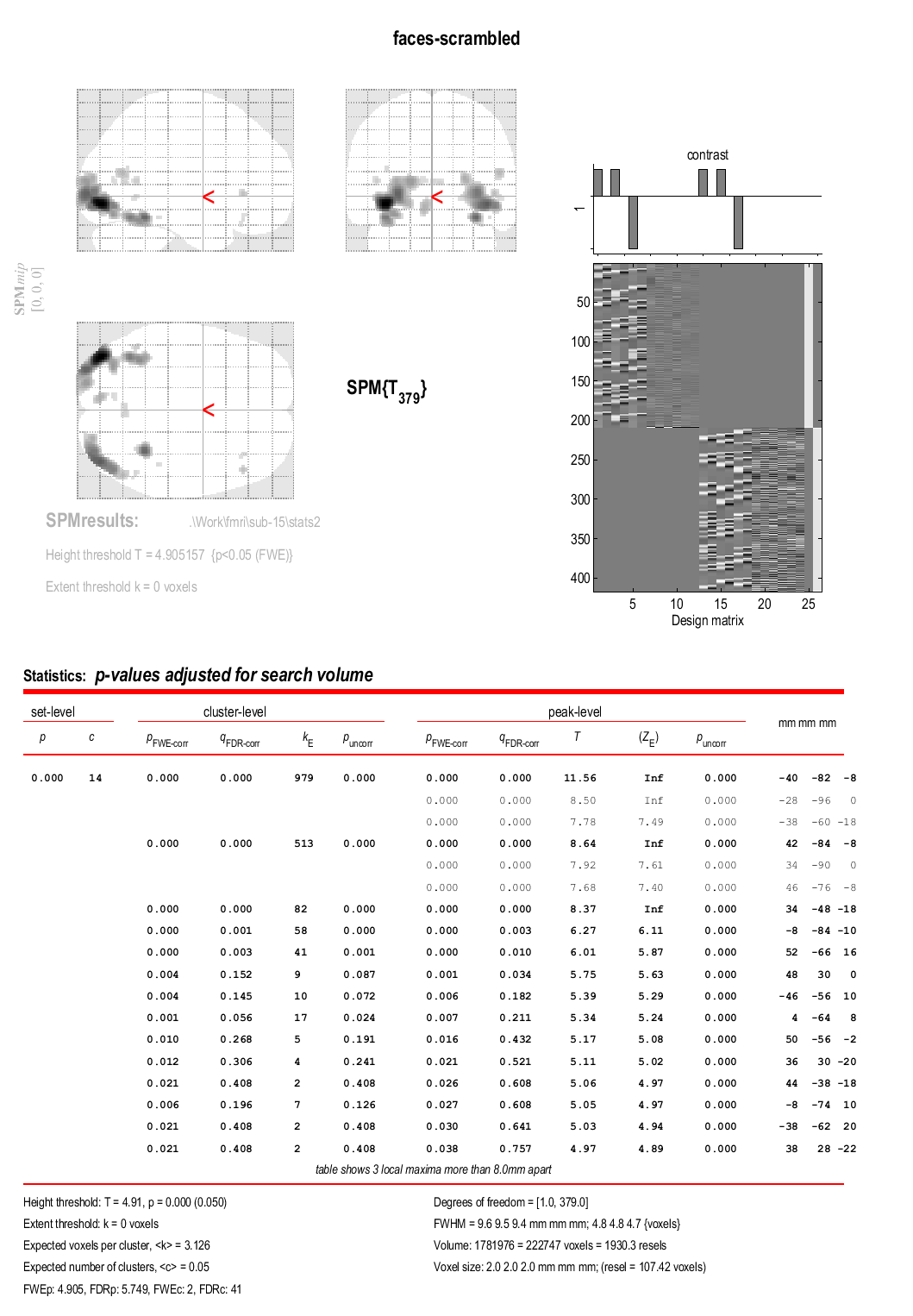

Results for faces - scrambled.

The top left of the window shows the maximum intensity projection (MIP), with is like three X-ray views through the results. Next to this is the design matrix and contrast, and below them is the table of results that we next focus on.

The rows written in bold in the table relate to the highest t statistic within each distinct blob. Where the text is not written in bold, the values relate to locally maximum voxels within the blobs (i.e., where a t statistic is higher than all the neighbouring t statistics) that are more than 8 mm apart.

The columns in volume table show, from right to left:

  • x, y, z (mm): coordinates in ICBM space for each maximum.
  • peak-level: the chance (p) of finding (under the null hypothesis) a peak with this or a greater height (T- or Z-statistic), corrected (FWE or FDR) / uncorrected for search volume.
  • cluster-level: the chance (p) of finding a cluster with this many (ke) or a greater number of voxels, corrected (FWE or FDR) / uncorrected for search volume.
  • set-level: the chance (p) of finding this (c) or a greater number of clusters in the search volume.

Ignore the set-level and cluster-level columns for now. If we focus on the peak-level columns we see: - p_FWE-cor shows family-wise corrected p values based on the magnitudes of the t statistics. These should all be below the 0.05 threshold entered earlier. This is the main column of interest. - q_FDR-cor shows the results of a false discovery rate correction, based on a proportion of blobs that will be false discoveries. This might be a bit advanced, so ignore it. - T shows the actual t statistics computed from the data. - (Z_E) shows the Z statistic that would have the equivalent statistical significance as the t statistic in the previous column. - p_uncorr shows uncorrected p values. These are usually very close to zero, but if you click on them their values are shown in the MATLAB window.

The final three columns of the table show the coordinates at which the statistics are computed. If you click on these coordinates, you should see that the red < in the MIP moves to that location. The units of the coordinates are mm, and relate to the space to which the images were normalised (ICBM space). These coordinates may not mean much to you, but if you’d like to see what brain structure they approximately correspond with, you could click on Atlas at the top of the “Interactive” window (the lower left of the three that appear when you start SPM), where you get the option to Label using Neuromorphometrics1. If you then right-click on the coordinates, you can see which brain structure they probably correspond with.

The “Interactive” window gives you many other options, which should be safe to play with without breaking anything. One of the options is to superimpose the blobs onto some background image, which you can do from the Overlays pull-down menu by selecting sections. For this, you could specify the spatially normalised and intensity non-uniformity corrected anatomical scan you created previously (../anat/wmsub-XX-T1w.nii). Returning to the table can be done by clicking the whole brain button on the “Interactive” window.

Notice that some new images have been created in the results folder. These are con_0001.nii and spmT_0001.nii. The former is the linear combination of beta images that you specified using a contrast vector, while the latter is the corresponding map of t statistics. When you later do a second-level analysis across subjects, this will be based on a con_00XX.nii from each subject.

Famous - Unfamiliar

Here, the aim is to identify where the BOLD signal is higher for the famous faces versus the unfamiliar faces. As previously, hit the Results button on the “Menu” window, select the SPM.mat, define a new t contrast and give it a name (whatever you like as long as you know what it represents). The contrast vector you enter would be:

1 0 -1 0 0 0  0 0 0 0 0 0  1 0 -1 0 0 0  0 0 0 0 0 0  0 0

One might expect more subtle effects from this contrast, so it may be worth using a prior hypotheses about where to expect differences in order to reduce the severity of the corrections for multiple comparisons. This time though, when asked about whether to apply masking, click the atlas button. This will ask you to select an atlas file, in which case choose ‘labels_Neuromorphometrics.nii,1’.

SPM will then open a table listing the various brain structures from the Neuromorphometrics1 atlas. You can select one or more of these (which will require you to hold the Ctrl button on your keyboard when selecting the 2nd, 3rd, etc structure). Brain regions to consider (from skimming a review by Natu & O’Tool, 2011) might include the following, which are listed in order:

  • Right Amygdala
  • Left Amygdala
  • Right FuG fusiform gyrus
  • Left FuG fusiform gyrus
  • Right LiG lingual gyrus
  • Right MTG middle temporal gyrus
  • Left MTG middle temporal gyrus
  • Right PCgG posterior cingulate gyrus
  • Left PCgG posterior cingulate gyrus
  • Right PHG parahippocampal gyrus
  • Right SFG superior frontal gyrus
  • Left SFG superior frontal gyrus
  • Right STG superior temporal gyrus
  • Left STG superior temporal gyrus
  • Right TMP temporal pole
  • Left TMP temporal pole

Another way to suggest brain regions that may be involved in various tasks is to search for relevant terms at Neurosynth. Note that the mask is inclusive because it includes only these regions. You can see which voxels are included by looking at the Neuromorphometrics_mask_0XX.nii image.

There may or may not be any statistically significant findings from this comparison. Only two of the nine runs per subject are used, which will reduce statistical power.

Any effect

Now we will do an F test to identify regions where there is any variance in the data explained by the events, in a way that is shared between the runs. As for the t contrasts, this involves hitting the Results button and selecting the SPM.mat to open the contrast manager. This time you would define a new F contrast. This requires an F contrast matrix that would take a lot of effort to type out as ones and zeros. Instead an easier way is used to generate it by defining it as follows:

eye(6) zeros(6) eye(6)
The results you obtain may look like those shown in the figure below.

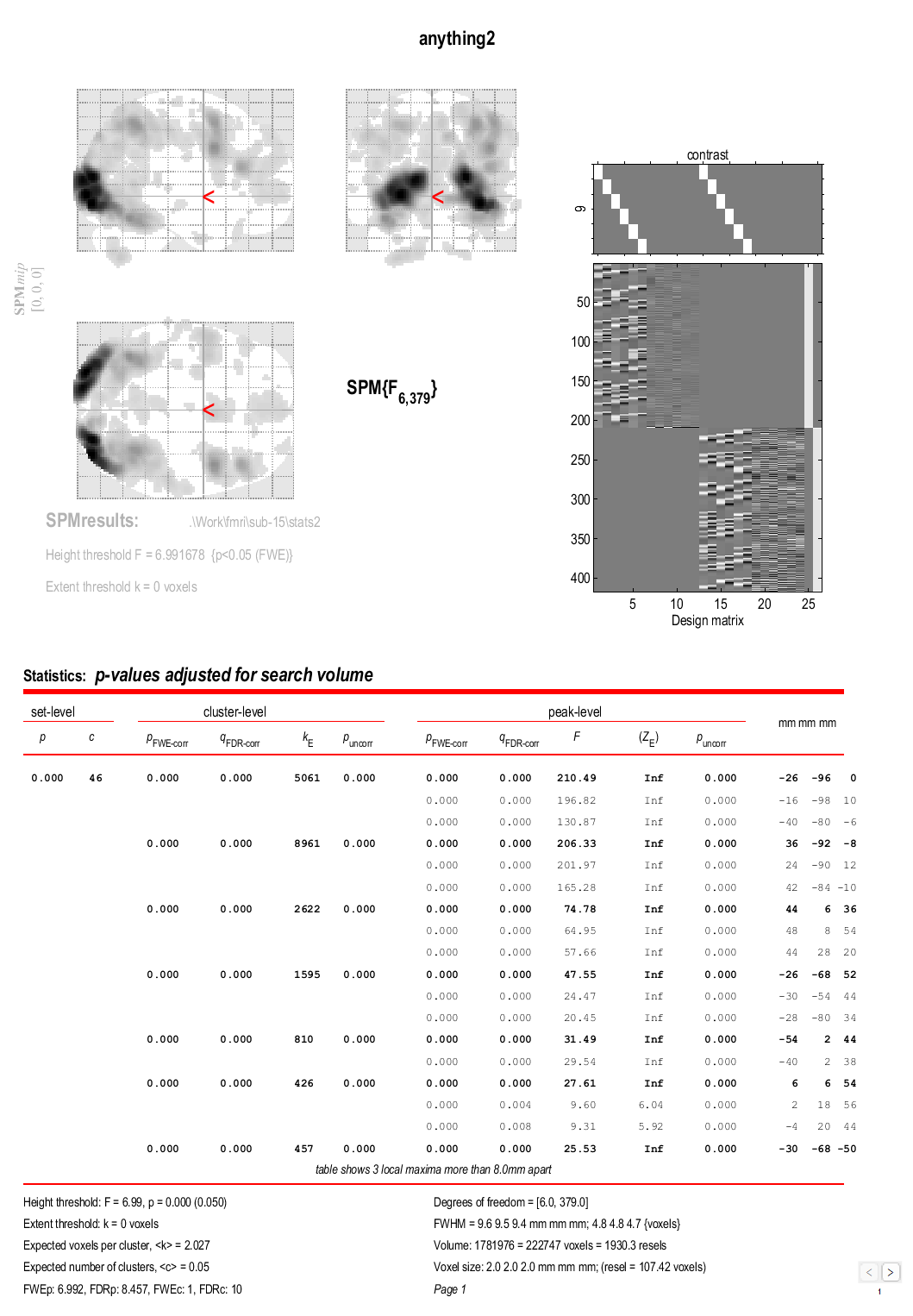

F test results.
