Linear Modelling and Statistical Tests

A Simple Simulated Example

Consider a simple linear model with two conditions and a linear effect that varies over (e.g.) time. In the example below, we let the first column encode the baseline, the second columns encodes the task, and the third column is some linear effect of time. Any haemodynamic effect is ignored to keep things simple. Try copy/pasting the following into MATLAB.

X = [[ones(2,1) zeros(2,1)
      zeros(2,1) ones(2,1)
      ones(2,1) zeros(2,1)
      zeros(2,1) ones(2,1)
      ones(2,1) zeros(2,1)] (0:9)']
This will give a matrix that looks like
X =

     1     0     0
     1     0     1
     0     1     2
     0     1     3
     1     0     4
     1     0     5
     0     1     6
     0     1     7
     1     0     8
     1     0     9

When we fit a linear model, we consider that the model explains how the data were generated. If we assume independent and identically distributed (i.i.d.) Gaussian noise, then the model of the data \({\bf y}\) is

\[ {\bf y} = {\bf X} {\beta} + {\epsilon} \text{, where } {\epsilon} \sim \mathcal{N}({\bf 0}, \sigma^2 {\bf I}) \]

In the above, the \({\epsilon} \sim \mathcal{N}({\bf 0}, \sigma^2 {\bf I})\) indicates that \({\epsilon}\) comes from a zero-mean i.i.d. Gaussian (normal) distribution where the variance is \(\sigma^2\). We can generate some simulated data (y) according to this model, where we use \({\beta}\) values of 30.0, 35.0 and 2.0 and a variance of 4.0.

In MATLAB, i.i.d. Gaussian random values with a variance of 1 can be created using the randn() function. To give the values a variance of 4, we multiply the random numbers by the standard deviation (the square root of the variance). The following snippet can be copy/pasted into MATLAB to simulate some data according to our model.

beta_gt = [30; 35; 2];
v_gt    = 4;
y       = X*beta_gt + randn(10,1)*sqrt(v_gt);

Estimating Model Parameters

We can estimate the beta values from the simulated data as we would for real data.

beta = X\y
After fitting a model like this in SPM, a set of beta_0001.nii, beta_0002.nii and beta_0003.nii images are created that encode the estimated beta values at each voxel.

We can also estimate the variance of the data by computing it from the residuals. This needs the degrees of freedom, which are computed from the length of y minus the rank of the design matrix X. This rank is the number of linearly independent columns (or rows), which in this case is 3.

nu = size(X,1) - rank(X); % Degrees of freedom
r  = y - X*beta;          % Residuals
v  = sum(r.^2)/nu
If you copy and paste the above snippets into MATLAB, you will see that the estimates (beta and v) are similar to, but not identical to the ground truth (beta_gt and v_gt).

When a statistical analysis is run in SPM, a file entitled ResMS.nii is created, which contains information about the variance estimated at each voxel.

Plotting

We can plot the (simulated) data, along with the model fit, by

plot((1:10)', y, 'k.',  (1:10)', X*beta, 'b-')
xlabel('Time')
ylabel('Signal')
legend('Data','Estimated fit')

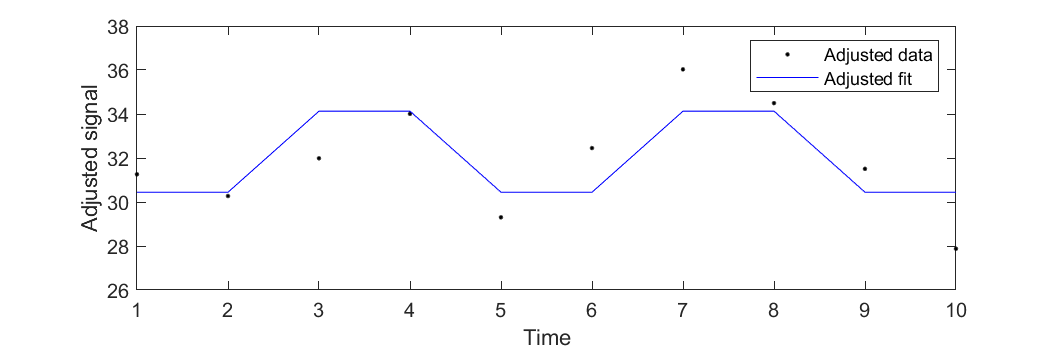

A plot of the data and model fit might be clearer without the linear trend in signal intensity. We can adjust what is plotted by subtracting the estimated linear trend.

y_adj   = y - X(:,3)*beta(3);
fit_adj = X(:,1:2)*beta(1:2);
plot((1:10)', y_adj, 'k.',  (1:10)', fit_adj, 'b-')
xlabel('Time')
ylabel('Adjusted signal')
legend('Adjusted data','Adjusted fit')

Contrast Vectors and Statistics

With fMRI, what we are typically interested in is the difference between BOLD signal during the task and BOLD signal during the baseline. This can be computed from the estimated beta, and is simply beta(2)-beta(1). Another way to think about this is as -1*beta(1) + 1*beta(2) + 0*beta(3). The weights [-1 1 0] give us the linear combination of beta values that are relevant to our question. We call this a “contrast vector”. If this is called c, then the linear combination of beta values is given by

c   = [-1 1 0];
con = c * beta
In SPM, the above would generate a con_???.nii file that contains the specified linear combination of beta values.

T Statistic

p values are based on probabilities of observing the data under the null hypothesis. With one sided t tests, this would be the probability of obtaining a value of con as high or higher than the one actually obtained. To do this, we need c * beta, as well as the estimated standard deviation of c * beta (the standard error). If we divide one by the other, we obtain the t statistic.

t = (c * beta) / sqrt(v * c * inv(X'*X) * c')
Without any correction for multiple comparisons, we can obtain the p value for this t statistic by
p = spm_Tcdf(-t,nu)
% or
p = 1-spm_Tcdf(t,nu)

As we will be doing something similar many times, I suggest creating a MATLAB function to do this. Create a file called t_stat.m somewhere on MATLAB’s search path, which contains the following:

function [p, t] = t_stat(y, X, c)
% Compute t statistics
% FORMAT [p, t] = t_stat(y, X, c)
% y - data
% X - design matrix
% c - contrast vector
% p - p value
% t - t statistic

% Error checking
assert(ndims(y)<=2 && ndims(X)<=2 && size(y,1)==size(X,1),...
       'Lengths of data and design matrix do not match.')
assert(ndims(c)<=2 && size(c,1)==1 && size(c,2)==size(X,2),...
       'Length of contrast vector does not match the number of design matrix columns.')
assert(size(X,1)>rank(X),...
       'Over-determined design matrix.')

% Things computed via SPM's Estimate button
nu   = size(X,1) - rank(X); % Degrees of freedom (saved in SPM.mat)
beta = (X'*X)\X'*y;         % Beta values (beta_XXXX.nii files)
r    = y - X*beta;          % Residuals
v    = sum(r.^2)/nu;        % Variance (ResMS.nii)

% Things computed once the contrast vector is specified
con  = c*beta;              % Contrast (con_XXXX.nii)
tmp  = c*inv(X'*X)*c';
t    = con./sqrt(v*tmp);    % T statistic (spmT_XXXX.nii)
p    = spm_Tcdf(-t,nu);     % P value

F Statistic

F tests are a bit harder to explain than t tests. One concept we need is the idea of a null space.

First though, we need to understand orthogonality. If two row vectors, say c and d, are orthogonal, then c * d' == 0. We can try this by copy/pasting the following into MATLAB:

d = [1 1 0];
d = d/sqrt(d*d'); % Makes the length of d equal to 1 (Pythagorus)
c*d'

e = [0 0 1];
c*e'
We also note that in the above example, d * e' == 0. Because the vectors contains three elements, they represent directions in 3D and can be visualised by:
plot3([-c(1) c(1)],[-c(2) c(2)],[-c(3) c(3)],'k', [-d(1) d(1)],[-d(2) d(2)],[-d(3) d(3)],'c', [-e(1) e(1)],[-e(2) e(2)],[-e(3) e(3)],'m')
axis image
rotate3d on
If you manually rotate the plot by dragging the curser around on it, then you should see that there is a right angle between all vectors. We can say that d and e form the null space of c. In MATLAB, we can obtain the null space for c by Cn = null(c). This can be used to remove information related to the contrast of interest from the design matrix by:
X0 = X*null(c)

An F test is done by comparing the amount of variance in y that cannot be explained by the full design matrix X, against how much of it cannot be explained by the reduced matrix X0. TO do this, we need to know the degrees of freedom, which for F tests have two values. The first is the degrees of freedom in the part of the design matrix of interest (1 in this example). The second is the same value as for the t test (7 in this example).

nu  = [rank(X)-rank(X0), size(X,1)-rank(X)]

The residuals and degrees of freedom are used to give two variance estimates:

r  = y - X*(X\y);
v  = sum(r.^2)/nu(2)
r0 = y - X0*(X0\y);
v0 = (sum(r0.^2) - sum(r.^2))/nu(1)

The ratio of these two variances gives the F statistic.

F = v0/v

Similar to the t test, we can compute a p value from this F statistic by

p = 1 - spm_Fcdf(F, nu)

You should notice that the p value given from the F statistic is twice as large as that from the t statistic. The reason for this is that the t static is based on a one-tailed t test, whereas the p value from the F statistic is equivalent to that from a two-tailed t test.

As we may be running F tests again, I would suggest creating an F_stat.m file somewhere on MATLAB’s search path, which contains the following:

function [p, F] = F_stat(y, X, C)
% Compute F statistics
% FORMAT [p, F] = F_stat(y, X, C)
% y - data
% X - design matrix
% C - contrast vector/matrix
% p - p value
% F - F statistic

% Error checking
assert(ndims(y)<=2 && ndims(X)<=2 && size(y,1)==size(X,1),...
       'Lengths of data and design matrix do not match.')
assert(ndims(c)<=2 && size(c,2)==size(X,2),...
       'Length of contrast vector does not match the number of design matrix columns.')
assert(size(X,1)>rank(X),...
       'Over-determined design matrix.')

nu2  = size(X,1)-rank(X);
beta = (X'*X)\X'*y;
r    = y - X*beta;
v    = sum(r.^2)/nu2;

Nc = null(c);
X0 = X*Nc;
nu = [rank(X)-rank(X0), nu2];
beta0 = inv(Nc'*X'*X*Nc)*Nc'*X*y;

r0 = y - X0*beta0;
v0 = (sum(r0.^2) - sum(r.^2))/nu(1)

%v0 = r0'*r0
XX = X'*X;
%v0 = y'*y - beta'*XX*Nc*inv(Nc'*XX*Nc)*Nc'*XX*beta
%v0 = beta'*XX*beta - beta'*XX*Nc*inv(Nc'*XX*Nc)*Nc'*XX*beta

v0 = (beta'*(XX - XX*Nc*inv(Nc'*XX*Nc)*Nc'*XX)*beta)/nu(1)

F  = v0/v

% Things computed via SPM's Estimate button
nu2  = size(X,1) - rank(X); % Degrees of freedom (saved in SPM.mat)
beta = (X'*X)\X'*y;         % Beta values (beta_XXXX.nii files)
r    = y - X*beta;          % Residuals
v    = sum(r.^2)/nu;        % Variance (ResMS.nii)

% Things computed once the contrast vector is specified
con  = c*beta;              % Contrast (con_XXXX.nii)
tmp  = c*inv(X'*X)*c';
t    = con./sqrt(v*tmp);    % T statistic (spmT_XXXX.nii)
p    = spm_Tcdf(-t,nu);     % P value
